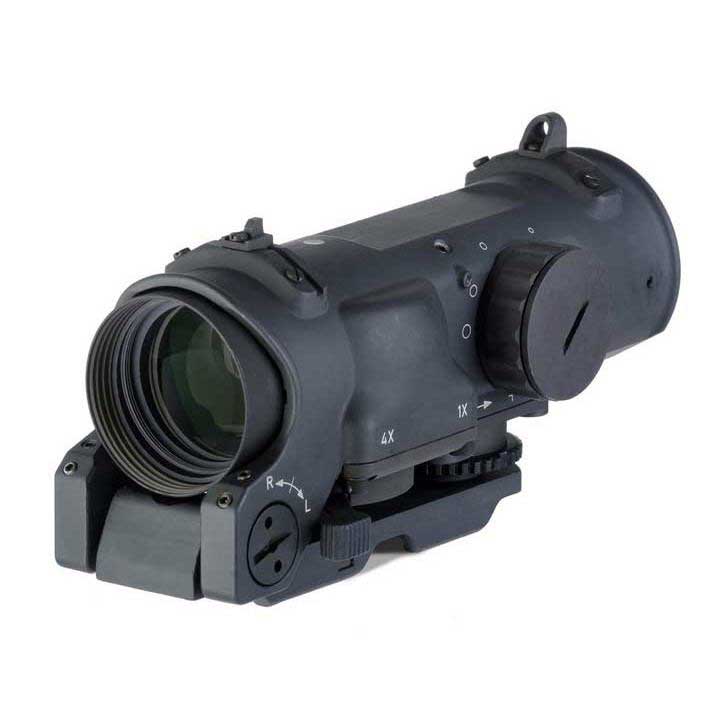

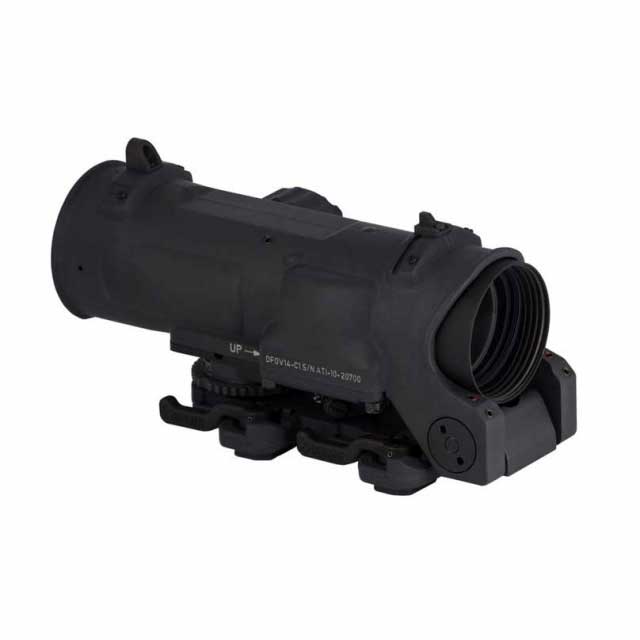

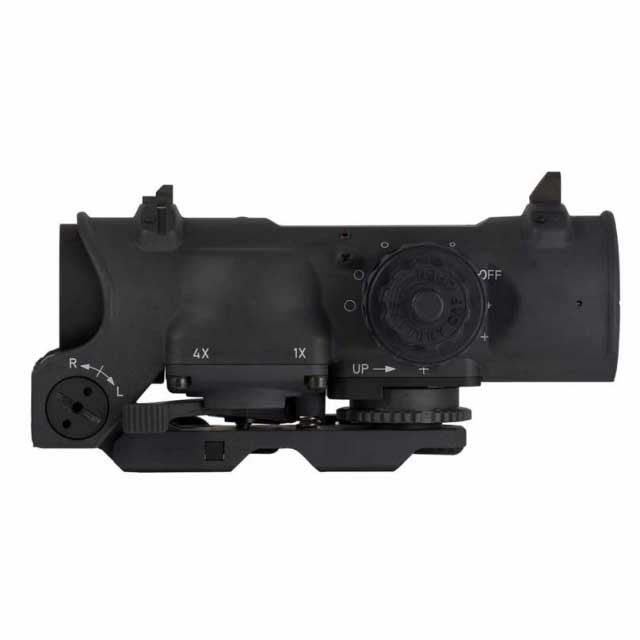

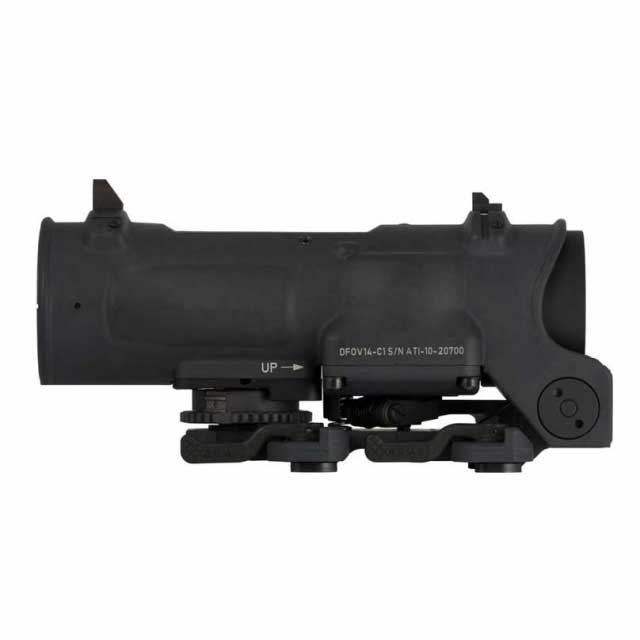

Elcan SpecterDR 1x-4x Dual Role Optical Sight
The Elcan SpecterDR 1x-4x Dual Role Optical Sight is a revolutionary combat optical sight, known for being the world's first to offer a truly dual field of view. This feature allows the user to instantly switch between a 4x magnified sight and a 1x Close Quarter Battle (CQB) sight with just the flip of a lever. This functionality sets it apart from traditional zoom sights by offering an optimized optical path and consistent eye relief in both magnification modes.
Key features of the Elcan SpecterDR 1x-4x include:
- Magnification: It offers a versatile range of 4x and 1x magnification, allowing for effective use in both medium-range and close-quarter engagements.
- Field of View: In the 1x mode, it boasts an exceptionally large field of view, the largest in its class. While in the 4x mode, it provides a generous field of view along with long eye relief and the renowned crystal clear image quality of ELCAN optics.

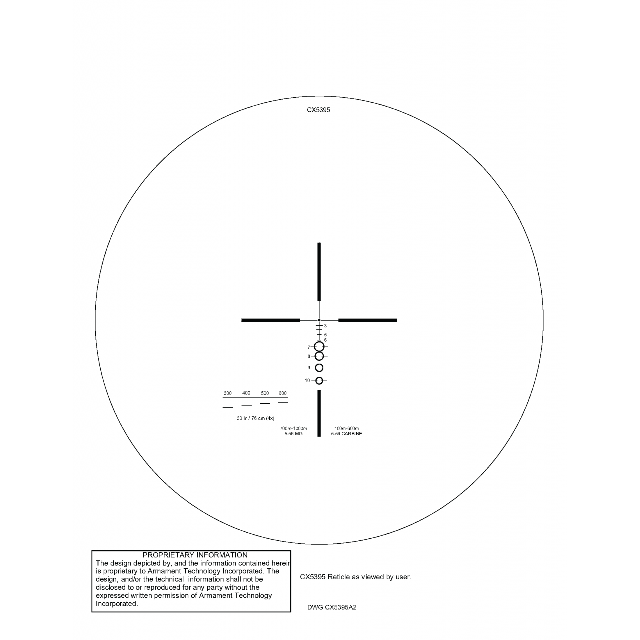

- Reticle Options: The SpecterDR comes with a dual-thickness ballistic crosshair with a user-selectable red dot, VSOR rangefinder, and area fire circles. The aiming dot diameter is 1.5 MoA at 4x and 6 MoA at 1x.
- Illumination: It features a battery-powered LED for crosshair illumination with five settings compatible with AN/PVS-22.
- Durability: Designed to withstand the rigors of professional use, its construction is robust and reliable.
- Additional Options: The sight can be equipped with optional adjustable A.R.M.S. levers and the XOPTEK™ Micro Reflex Sight for enhanced performance.
In terms of specifications, the Elcan SpecterDR 1x-4x has a length of 153mm, width of 74mm, height of 78mm, and weighs around 660g. It is shockproof to 450 g’s and has a battery life that varies depending on the settings used. The exterior is finished with hard-anodized aluminum in gray/black color.
This optic is highly regarded for its quality and performance, making it a popular choice among professionals in the military, law enforcement, and hunting fields.
| Available Models | ||||
| Part Number | Description | |||
| DFOV14-C1 | SpecterDR Dual Role 1x/4x 5.56 NATO Optical Sight, CX5395 reticle, Color: Matte Black w/ intergral A.R.M.S. Picatinny mount(black), Includes Anti-Reflection Device. | |||
| DFOV14-C2 | SpecterDR Dual Role 1x/4x 7,62 NATO Optical Sight, CX5396 reticle, Color: Matte Black w/ intergral A.R.M.S. Picatinny mount(black), Includes Anti-Reflection Device. | |||
| DFOV14-T1 | SpecterDR Dual Role 1x/4x 5.56 NATO Optical Sight, CX5395 reticle, Color: Flat Dark Earth; w/ intergral A.R.M.S. Picatinny mount(black), Includes Anti-Reflection Device. | |||
| DFOV14-T2 | SpecterDR Dual Role 1x/4x 7,62 NATO Optical Sight, CX5396 reticle, Color: Flat Dark Earth; w/ intergral A.R.M.S. Picatinny mount(black), Includes Anti-Reflection Device. |
Alt Description:
- elcan specter 1-4
- elcan specterdr
- elcan specterdr 1 4
- elcan specterdr 7.62
- elcan spectre dr
- elcan specter dr 1x/4x
- elcan reticle
- elcan 1x4
- specter optics
- elcan specterdr 1-4x
- elcan dr
AR Optic Quick Links:
| SPECS | |
|---|---|
| MODEL | EG1 |
| OPTIC TYPE | Virtually Parallax free prism |
| LENS DIMENSIONS | 30 mm Diameter |
| EYE RELIEF | Unlimited |
| MAGNIFICATION | 1X |
| 1 CLICK | 24 MM @ 100 M (DOT ONLY) / 1 MOA |
| OVERALL DIMENSIONS | 62mm x 58 mm x 60 mm(LxWxH) |
| WEIGHT | 324 g (11.8oz) w/Mount and Battery |
| DOT SIZE | 1.5 MOA |
| BRIGHTNESS SETTINGS | 15 ( 11 daylight, 4 night vision) |
| STORAGE TEMP RANGE | -41° ~ 71° C, (-42° ~ 160° F) |
| OPERATING TEMP RANGE | -32° ~ 71° C, (-25.6° ~ 160° F) |
| RUBBER HOOD | Included |
| NIGHT VISION COMPATIBLE | YES |
| SWITCH | Manual Rotary Switch |
| MOUNT | Standard Mount |
| BATTERY LIFE | +5000 Hrs (Mid Brightnes Level) |
| WATERPROOF | Submersible up to 10 Feet |
| ADJUSTMENT RANGE | 50 (+/-) CLICKS |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to - www.P65Warnings.ca.gov.
Customer Ratings & Reviews
Ratings Snapshot
out of 5
5
(2)
4
(1)
3
(0)
2
(0)
1
(0)
Would recommend this product.
100%
out of 5
5
(2)
4
(1)
3
(0)
2
(0)
1
(0)
Would recommend this product.
100%
3 Total Reviews
- 1
Elcan Specterdr 7.62 does many things very well.
Warren
Location:
Date:
November 1, 2019
elcan specterdr 7.62 The Elcan Specterdr 7.62 scope my not be “the best” clarity, “the best” magnification, “the best” for lightweight, but instead of doing one thing perfectly, it does many things very well. My first experience with Elcan Specterdr 7.62 was a night vision scope we used on our LMGs and SAWs. That was back when iron sights were still a primary combat optic. This company has been improving since then, and it shows. If you need a multi-roll optic that’s reliable and durable, this is it. Or the 1-6-9 version of the Spectre, the TR model.
Recommended
no comparison
Lew
Location: Jeffersonville
Date:
July 27, 2013
say what you want about the other combat scopes on the market, this is the top of the line hands down.
Recommended
Elcan SpecterDR is awesome!!!
ronald
Location: texas
Date:
September 24, 2011
All in all it is an awesome sight. IMO is better than an ACOG/RMR combo because you have to have different head positions for the ACOG/RMR combo. The one downside is that you do have to have a consistent cheek weld in order to see through it unlike a holo sight. Otherwise it is a well built unit that has very easy to use adjustments and the glass is amazing.
